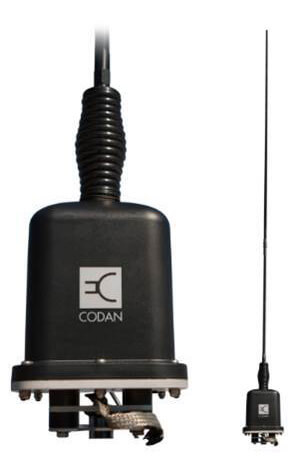

3040 Automatic Whip Antenna

HIGH PERFORMANCE

The 3040 Automatic Whip Antenna is a low profile, high a performance alternative to the highly successful 9350, providing a mobile antenna solution for all families of Codan high-frequency radios.
The combination of lightning-fast tuning, compact form factor, and rugged construction all contribute to provide state of the art mobile antenna tuner product.

Get a Quote

Get A Quote

Full Name*

Email*

Country:

Country Code

Telephone

Notes

  • Tuning fast speed  New frequency 1 sec average, memory tune
  • Mechanical Temperature rating,  –40°C to 70°C, 95% humidity
  • DC operating range from 11 to 15.5V DC (12 V DC nominal)
  • Input impedance  50 Ω
  • 125 W PEP (voice and data)
  • MIL-STD-810F (Temperature, Immersion, Vibration, Dust)
  • Supports ALE and frequency hopping mode
  • 145 mm W x 165 mm D x 240 mm H(excludes spring and whip)
  • 3.15 Kg including spring and whip
  • Colour, Black

DOWNLOAD FACTSHEET
